FMA300 Pro
Auto Steering System

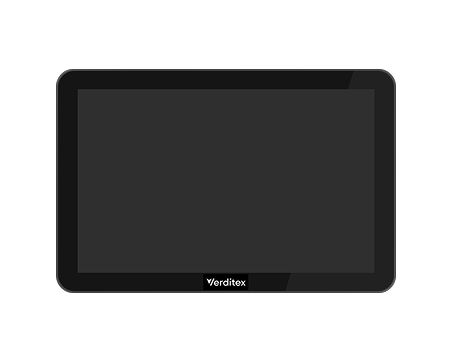

Tablet
- 12.1-inch HD display
- Dual-system with super computing power
- High brightness, anti-glare

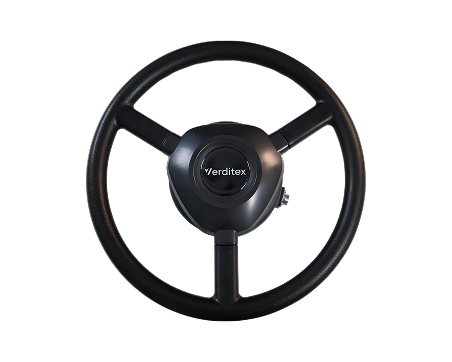

Electric Steering Wheel
- Slimmer, lighter design
- High-torque system
- Advanced real-time dynamic correction

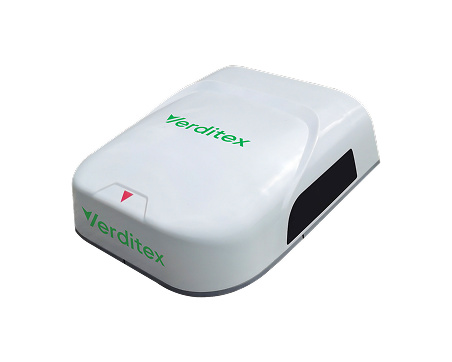

AP100 GNSS Receiver
- All-in-one design
- full-constellation & multi-frequency
- IP67-Rated
FMA300 Pro is an advanced auto-steering system engineered for superior performance, durability, and operator experience. Featuring a large 12-inch display with high-performance computing , and an electric steering motor with an assisted steering knob, it delivers smoother control, faster response, and enhanced reliability in demanding field conditions.
Support ISOBUS, it can control multiple implements with a single display in the cab, reducing complexity and improving operator efficiency. Seamless connectivity with the VerdiOne platform further enhances functionality, providing powerful tools for farm management, task coordination, and scalable precision agriculture.
Features
- Universal implement control via ISOBUS
- ≤2.5 cm consistent accuracy
- 0.1-30 km/h operating speed
- Versatile work modes
- Reliable performance
- Automatic terrain compensation
- VerdiOne Farm Management

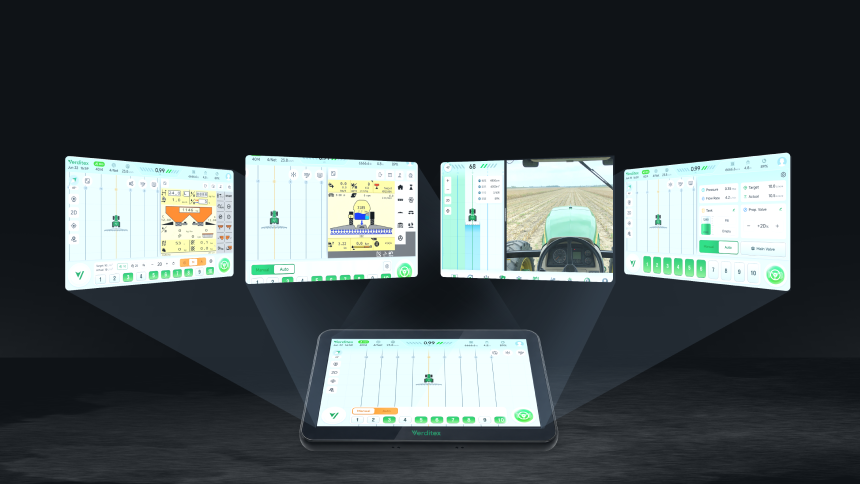

With seamless support for VT, TC-SC, and AUX-N, one terminal manages all your ISOBUS-compliant implements, including sprayers, spreaders, seeders, balers, mowers, and wagons.
FMA300 Pro is an accessible and reliable auto steering system designed to bring precision farming within easy reach. With a highly integrated architecture and fast installation, it enables operators to quickly adopt hands-free guidance and improve efficiency from day one.

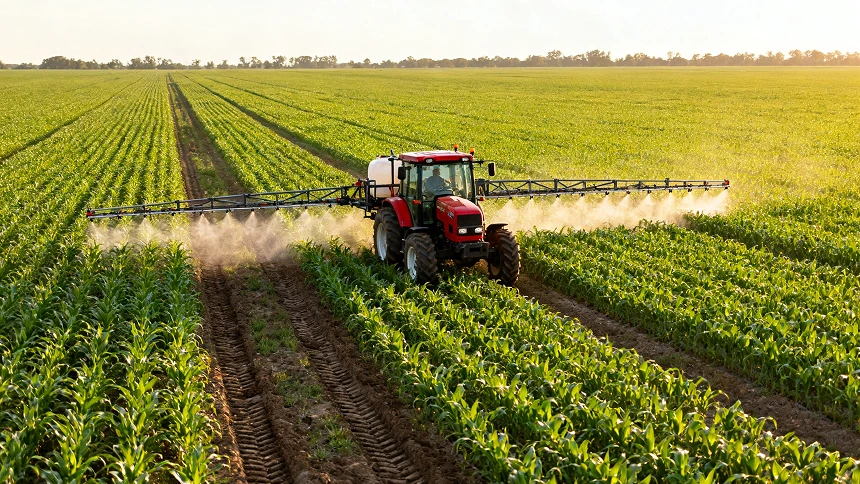

Maintains centimeter-level steering accuracy across its full operating speed range from 0.1 to 30 km/h, adapting to low-speed seeding, high-speed spraying and harvesting operations.
The system supports multiple operating modes, including straight line, curve, pivot, diagonal harrowing, and basic or Ω-shape U-turns, to effortlessly handle complex field operations.
Supports multiple correction sources, including Quectel global N-RTK, local CORS networks, radio base stations, and SBAS, as well as Precise Point Positioning services like PPP-B2b and PPP-HAS.
Automatically compensates for hillsides, slopes, and rough terrain, optimizing steering accuracy by sensor fusion algorithms integrating data from high precision GNSS and inertial sensors.
Web-based management of fields, machines, operators, and prescriptions, with task sharing and operational insights.
Specifications
Specifications
| System performance | Range: 9-32V DC |
| Typical: 12/24V DC | |
| Pass-to-pass accuracy | ≤2.5 cm |
| Vehicle velocity | 0.1-30 km/h |
| NMEA output | Connector: DB9 |
| Data format: NMEA 0183 | |
| Output frequency: 1/2/5/10 Hz | |
| Operating temperature | -20 ℃ ~ +70 ℃ |
| Storage temperature | -40 ℃ ~ +85 ℃ |
Tablet
| Display size | 12.1-inch LCD touch screen (support 5-point touch) |
| Display brightness | 750 nits |
| Resolution | 1280 × 800 Pixels |
| Communication | GSM, UMTS, LTE |
| Wi-Fi 2.4G | |
| Bluetooth 4.2, BLE | |
| Dust and waterproof | IP65 |
GNSS receiver
| Constellations | BDS: B1I, B1C, B2a, B2b, B2I, B3I |
| GPS: LIC/A, L1C, L2C, L5 | |
| GLONASS: G1, G2 | |
| Galileo: E1, E5a, E5b, E6 | |
| QZSS: LIC/A, L1C*, L2C, L5, L6 | |
| NavIC: L5 | |
| SBAS: L1 | |
| SBAS | WAAS, EGNOS, BDSBAS, MSAS, GAGAN, SDCM |
| RTK accuracy (RMS) | Horizontal: 0.8 cm +1 ppm |
| Vertical: 1.5 cm+1 ppm | |
| PPP accuracy (RMS) | Horizontal: 5 cm |
| Vertical: 10 cm | |
| Speed accuracy (RMS) | 0.03 m/s |
| IMU accuracy | Roll/Pitch: 0.2° |
| Heading: 0.3° | |
| Radio frequency | 410-470 MHZ |
| Dust and waterproof | IP67 |
Electric steering wheel
| Torque | Typical: 7 N·m |
| Peak: 13 N·m | |
| Motor speed | 100 r/min (max.) |
| Wheel diameter | Ø400 mm |
| Motor dimension | Ø173 mm × 65 mm |
Camera
| Video signal | AHD1080 |
| Resolution | 1920× 1080 Pixels |
| Dust and waterproof | IP67 |
Benefits
Fast payback
Reduce fuel, seed and fertilizer costs by up to 15%
24/7 operation
Operate reliably day and night, even in dusty conditions and low visibility
Easy to operate
Intuitive operation delivers consistent performance, regardless of operator experience
Yield optimization
Maintain precise field passes to maximize crop yield potential
